This Listing was Sold by the owner.

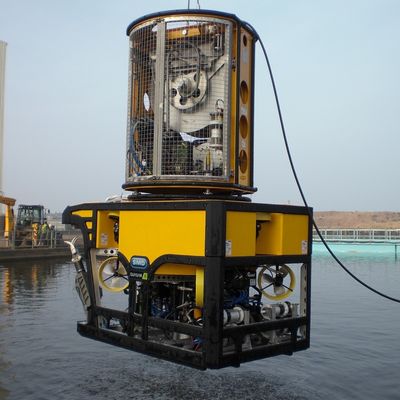

Quasar Work Class ROV

The Quasar MkII Work Class ROV (Q16) is a system from Soil Machine Dynamics. It is rated for 3000m with 110kW (150hp) of power and comes complete with surface control system, tether management system, umbilical winch, fully stocked spares cabin and A-F...
Price
Contact seller
Equipment Info
Manufacturer
SMD Quasar MkII
Year built
2012
Condition
Excellent
Ownership
Terms
Contact seller
Location
Port of Tyne, UK
ID
104
Seller
Dockstr User Verified user

User since October 2018

Typically replies in 3 hours
USER RATING

72%

Share

Details

• Depth Rating: 3000msw
• Dimensions: 3200mmx1800mmx1800mm (lxwxh)
• Air Weight: 3.5te air weight
• Hydraulic Power: 110kw (150hp)
• Propulsion: 4xHorizontal and 3xVertical Thrusters
• Operating temperature: -10⁰C to +45⁰C
• Spare uplift: 250kg
• Hydraulic Control Unit featuring 12 channel valve pack
• Extending tooling basket
• Surveillance kit (cameras, lamps, sonar) Also included with the ROV.
• 20ft control and workshop cabin (A60 ISO Zone 2 rated) DVECS Control and Power system with pilot and co-pilot control desk.
• Compact Tophat TMS with a 400m Tether (450m capacity available) to depth rating of 3000m
• 12te WSL Zone 2 A-Frame with umbilical winch and Twin HPU (75kW) with a 3300m umbilical.
• Deck HPU
• Fully stocked 20ft spares cabin
Show more
Show less

Documents

Sign in to view documents
