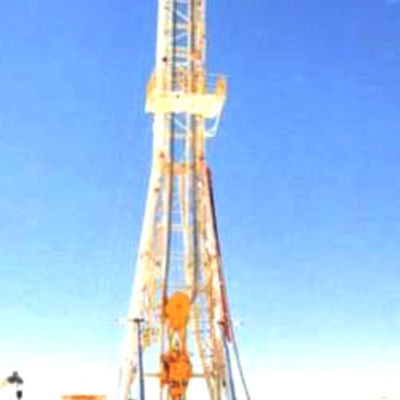

LT01 1500HP VFD Land Drilling Rig


Top Oilfield Industries has a LT01 1500HP VFD Land Drilling Rig available for sale located in Sharjah, UAE. It has been manufactured by the company based on a design from Letourneau Technology Inc., USA and can operate up to a nominal drilling depth of 16,404ft (5000m) with 1-3/8” wireline diameter.

Lt01
Lt01
INFO  Sign in to add to favorites
Indicative priceLock
ManufacturerTop Oilfield Industries Ltd
Year built
Condition
LocationLock
OwnershipLock
TermsUpon request
Id245
Contact sellerLock
DOCUMENTS  Sign in to view documents

DETAILS
Specifications:
• MAST: * Type: Letourneau Technology Inc., USA * Height: 147ft (44.80m) * Static Hook Load: 1,000,000 Lbs.
• SUBSTRUCTURE * Type: Letourneau Technology Inc., USA * Height: 30ft * Height, Rotary beam to 24ft * Casing Capacity: 1,000,000 Lbs. * Setback Capacity: 600,000 Lbs.
• DRAWWORKS * Type: Letourneau Technology Inc., USA * LDW 750K * Power rating: 1500 HP * Input Power: 2 x 1150HP AC Motor * Drilling line Diameter: 1-3/8” in. * Auxiliary Brake: Eaton
• TRAVELLING SYSTEM * Crown Block: Letourneau Technology Inc., USA * 6 x 60” Sheaves, 2 x Deadline Sheave * 1,000,000 Lbs. with 12 Lines * Hook: Letourneau Technology Inc., USA * Model HH500 * 1,000,000 Lbs. * Travelling Block: Letourneau Technology Inc., USA * TB 500, 6 x 60” Sheaves * 1,000,000 Lbs. Top Drive: Letourneau Technology Inc., USA * DDTD500, 500 Ton *1,000,000 Lbs. * Direct Drive, 1 x AC motor * 930 HP from 120 – 240 RPM *Hydraulic Pipe Handler * 80,000 Ft Lbs. Torque Capacity
• ROTATING SYSTEM *Rotary Table: Letourneau Technology Inc., USA * 37-1/2” * Independent drive * Swivel: GEFCO, Model 50 MB * 1,000,000 Lbs., 5000psi
• POWER CONTROL SYSTEM * Engines: 4 x CAT 3512B * Generators: 4 x Kato 1750 KW Each * Power Transfer type: AC-VFD
• WELL CONTROL SYSTEM * Diverter: Yes * High Pressure Annular: 1 x Hydril GK, 13-5/8” * 5000 psi * H.P RAM Preventer: 1 x Single + 1 x Double ram, 13-5/8” * 10,000 psi * BOP Control Device: NOV * 6 Station, 3000psi * Choke & Kill Manifold: 3-1/16” x 10,000 psi
• MUD SYSTEM * Mud Pumps: 2 x Letourneau, USA WH1612 * 1600HP, 5000 psi * Active mud Volume: 1150 bbl * Reserve Mud Volume: 1250 bbl * Shale Shaker: Brandt King Cobra - 1500 GPM * Mud cleaner: Brandt King Cobra * Desander 24 Cone included in mud cleaner * Desilter 2 Cone included in mud cleaner
• ENHANCEMENTS *Kelly Spinner: Pneumatic, Forum USA
