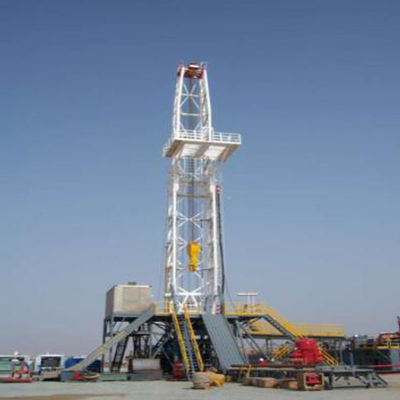

750 HP Trailer mounted Drilling Rig


Top Oilfield Industries has a 750 HP trailer mounted drilling and work-over rig available for sale located in China. It has been manufactured by the company based on a design from RG Petro-Machinery CO. LTD and can operate up to a nominal drilling depth of 9800ft (3000m) 4-1/2” DP with 1-1/4” (φ 32mm) wireline diameter - 8200ft (2500m) 5” DP.

Tyzj30
Tyzj30
INFO  Sign in to add to favorites
Indicative priceLock
ManufacturerTop Oilfield Industries Ltd
Year built
Condition
LocationLock
OwnershipLock
TermsUpon request
Id247
Contact sellerLock
DOCUMENTS  Sign in to view documents

DETAILS
Specifications:
• MAST : * Model: JJ18038 * Height: 125ft (38m) * Max. Hook Load: 400,000 Lbs. (1800kN)

• SUBSTRUCTURE: * Model: ZZT180 * Height: 19.7ft * Clear height for BOP: 15.7ft * Top Surface Working area: 24’ x 20’ (7.2m x 6m)

• DRAWWORKS: * Model: JC28/11 * Input rotating speed: 450rpm * Fast-line Pulling Force: 280kN * Braking: Band Brake + Auxiliary Brake * Line pulling force of the 110kN * sand reel * Auxiliary Brake: Eaton WCB324

• TRAVELLING SYSTEM: * Hook + Travelling Block: YG225 * 36” x 5, API 8A * 400,000 Lbs. (1800kN) * Crown Block: TC180, Three-Shaft type * 400,000 Lbs. (1800kN) * 5 x Fast-line sheave, Dia. 36” * 1 x Sand-line sheave, Dia. 19.7″

• HYDRAULIC CATHEAD: * Model: Y15160 * Available Stroke Length: 1600mm (63”) * Max. Pull: 33,000Lbs (150kN) * Pressure: 2000psi (14Mpa)

• ROTATING SYSTEM: * Rotary Table: ZP275 * 27-1/2” * 1,000,000 Lbs. (4500 kN) * AC Motor Driven (400 kW) * Swivel: XSL225 * 500,000 Lbs. (2250 kN) * 5000psi (35 Mpa)

• POWER CONTROL SYSTEM: * Diesel Generator: 3 x CAT C18 * Power Transfer type: AC-SCR-DC * Working Voltage: 380V, 50Hz

• WELL CONTROL SYSTEM: * Double Ram BOP: ZFZ35-35 * 13-5/8” * 5000psi (35Mpa) * Annular BOP: FH35-35 * 13-5/8” * 5000psi (35Mpa) * BOP Control Device: FKQ640-6 * 6 Station, 5000psi (35Mpa)

• MUD SYSTEM: * Mud Pumps: 2 x RGF-1000, 1000HP * CAT 3512 Engine Driven * Mud Tank: 1250 (200m3) * Shale Shaker: HS280-3P, Straight Line, 40~50L/S * Mud cleaner: HM100X16, 160~180m3/h

• TRAILER: * Model: ES9660, 45km/h * Trailer Frame: CJ-01, CQ model axles, Double tyre
