750 HP Super Single Rig


Top Oilfield Industries has a 750 HP super single rig available for sale located in Oman. It has been manufactured by the company based on a design from Schramm and can operate up to a nominal drilling depth of 10,000ft (3300m) - 5” DP with 1-1/4” wireline diameter.

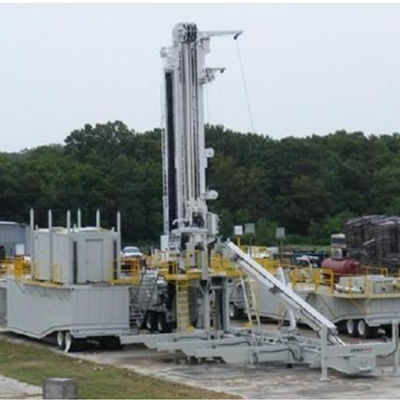

Ghazal 1
Ghazal 1
INFO  Sign in to add to favorites
Indicative priceLock
ManufacturerTop Oilfield Industries Ltd
Year built2008
Condition
LocationLock
OwnershipLock
TermsUpon request
Id248
Contact sellerLock
DOCUMENTS  Sign in to view documents

DETAILS
Specifications:
• MAST: * Type: Telescopic * Height: 52.10ft (15.88m) * Gross Nominal Capacity: 200,000 Lbs.

• SUBSTRUCTURE: * Type: Trailer Mounted * Height: 13 (Adjustable) * Casing Capacity: 200,000

• FEED LINE SYSTEM: * Sheaves: 2 x 27” PD Nylatron * Line Size: 1-1/2” OD 8x26 Wire rope * Breaking Strength: 128.2 Ton.

• SWIVEL: * Model: Chevron Packing 3” ID * Maximum Pressure: 3000 PSI

• PIPE HANDLING & HOISTING: * Pipe Handling: Automated * Hoist Capacity: 200,000 Lbs. * Hoist Speed: * 0 – 130,000 Lbs. 100 ft per minute. * 131,000 – 180,000 Lbs. 75 ft per minute * 181,000 – 200,000 Lbs. 25 ft per minute

• TOP DRIVE: * Model: High Torque Char-Lynn * 10,000 Series Motor * Rotation HP: 367 HP * RPM & Torque: 0 – 90 RPM. * 17,500 ft-lbs * 0 – 180 RPM. * 7,670 ft-lbs

• ROTATING SYSTEM: * Rotary Table: 30.25”

• POWER CONTROL SYSTEM: * 1st Engine: 1 x Detroit Engine DDC/MTU * 760 kW, 1800 RPM * 2nd Engine: 2 x Cummins GSK23 G7 * Generator Alternator: Newage Stamford HCI 634G * Working Voltage: 480V, 60 Hz, 3 Phase & * 220V, Single Phase, 60 Hz

• WELL CONTROL SYSTEM : * Bag Type BOP: Shaffer Bolted Cover * 11” * 5000psi * RAM BOP: Shaffer LWS-LXT Double Ram * 11” * 5000psi * BOP Control Device: CAD * 3000psi * Choke Manifold: MCM, 5000 PSI * BOP Test Unit: Shaffer, 5000 PSI * MUD SYSTEM * Mud Pumps: 2 x Mud King MK-PZ9 * 1170 GPM * Mud Tank: 800 BBL * Shale Shaker: 3 x Fluid System Inc/ Series 500B * Mud Gas Separator: Swaco Style * Water Tank: 500 BBL * Fuel Tank: 400 BBL
