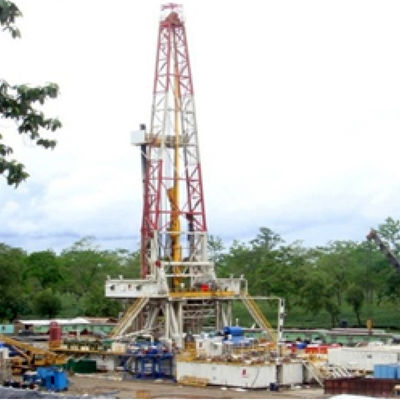

1200HP SCR Land Drilling Rig

DESCRIPTION

Design : Complete Drilling Solution LLC Wire Line Dia: 1-3/8”

DETAILS

MAST Make / Type: Complete Drilling Solution LLC Height: 142ft (43.28m) Static Hook Load: 650,000 Lbs. SUBSTRUCTURE Make / Type: Complete Drilling Solution LLC Dimension: 32’ Wide x 47’ Long x 25’ High Type: Sling Shot DRAWWORKS Type: American Block 1500 E Power rating: 1200 HP Input Power: 2 x GE752 DC Motor Drilling line Diameter: 1-3/8” in. Auxiliary Brake: Johnson Caliper TRAVELLING SYSTEM Travelling Block: American Block 5 x Sheaves 350 T (700,000 Lbs). Top Drive: Ben-Tec TD 350 350 T 0 to 115/230 rpm Swivel: American Block 300 T Kelly Spinner: JT-6000 AIR SYSTEM Rig Air: 2 x Sullivan Palaket 125 SCD 25 HP Motor Air Dryer 2 x Air Cell Cold Start Compressor: Quincy QF15 ROTATING SYSTEM Rotary Table: American Block 37-1/2” Independent drive (1 x GE 752) POWER CONTROL SYSTEM Engines: 4 x CAT 3512 1 x CAT 3512C Power Transfer type: AC-SCR-DC SCR: 4 Bays WELL CONTROL SYSTEM High Pressure Annular: 1 x Cameron, 13-5/8” 5000 psi H.P RAM Preventer: 1 x Double ram, 13-5/8” 5000 psi BOP Control Device: Top Oilfield 7 Station, 3000psi Choke Manifold: 3” x 3” x 2” x 2” Studded End Cross 5,000 psi MUD SYSTEM Mud Pumps: 2 x Hong Hua, HHF 1600 1600HP, 5000 psi Active mud Volume: 2000 BBL Shale Shaker: 3 x NOV Brandt Tri-level Mud Cleaner 3 in 1 x NOV Brandt With Shaker, De-sander & De-silter ENHANCEMENTS Iron Roughneck: Blohm & Voss, USA Type 9 GF-4700
Price:
Ownership:

INFO

Manufacturer:
Top Oilfield Industries Ltd
Year built:
2013
Condition:
Last CAT Inspection: CAT IV 2014
Location:
ID:
252
