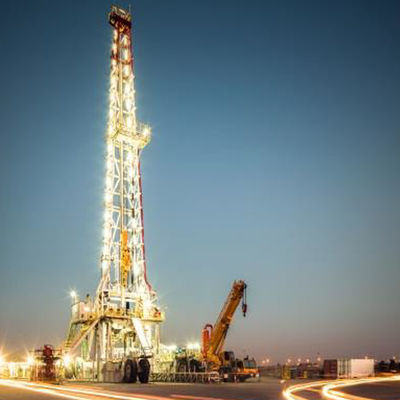

Fast Moving Land Drilling Rig

DESCRIPTION

Fast Moving 1500HP SCR Land Drilling Rig Design : Union Industrielle & D'Enterprise(UIE) Nominal Drilling Depth: 16000 ft. with 4-1/2” DP Wire Line Dia: 1-3/8”

DETAILS

MAST Make / Type: UIE / K Style Single Structure Height: 147ft (44.80m) Static Hook Load: 750,000 Lbs. SUBSTRUCTURE Make / Type: UIE Height: 29.93Ft (9.125M) Height, Rotary beam to 25.69FT (7.83M) Ground Rotary Capacity: 1,300,000 Lbs. Setback Capacity: 500,000 Lbs. DRAWWORKS Type: National UE 110 Power rating: 1500 HP Input Power: 2 x GE752 DC Motor Drilling line Diameter: 1-3/8” in. Auxiliary Brake: Baylor 6032 TRAVELLING SYSTEM Crown Block: UIE 6 x 50” Sheaves, 1 x fast-line Sheave (56”) Travelling Block: Gardner Denver GDM 400, 6 x 50” Sheaves 800,000 Lbs. Top Drive: Global Drilling Support, USA GDM 500, 500 Ton 1,000,000 Lbs. GE B20 AC motor 800 HP, 2500 RPM 80,000 Lbs. - Breakout torque 45,000 ft-lbs. – Continuous Torque AIR SYSTEM Rig Air: Sullair, 125 PSI, 260 CFM Air Dryer Sullair, 300 SCFM Cold Start Air Compressor: IR & Duetz, 150 PSI ROTATING SYSTEM Rotary Table: National Model C-375 37-1/2” Independent drive GE-752 1085 HP POWER CONTROL SYSTEM Engines: 4 x CAT 3512B Generators: 4 x SR4B (1045 kW) Power Transfer type: AC-SCR-DC Back-up Engine: 1 x CAT C-15 WELL CONTROL SYSTEM High Pressure Annular: 1 x Axon, 13-5/8” 5000 psi H.P RAM Preventer: 1 x Single + 1 x Double ram, 13-5/8” 5000 psi BOP Control Device: Top Oilfield 8 Station, 3000psi Choke & Kill Manifold: 3-1/16” x 10,000 psi MUD SYSTEM Mud Pumps: 2 x National Oilwell 12-P-160 1600HP, 5000 psi Active mud Volu...
Price:
Ownership:

INFO

Manufacturer:
Top Oilfield Industries Ltd
Year built:
2016
Condition:
Last CAT Inspection: CAT IV 2016
Location:
ID:
254
