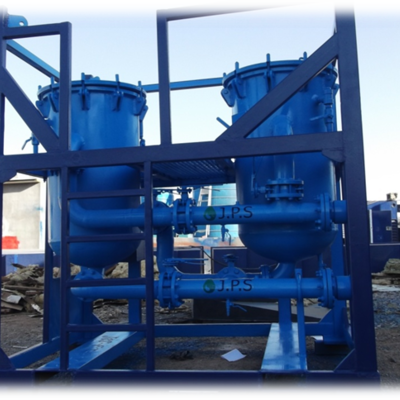

FT-6000 7 bar WP Cartridge Filtration Unit


FT-6000 7 bar WP Cartridge Filtration Unit available for sale which can handle well completion fluids, brine gravel pack fluids, glycolamines, work-over fluids acids, bilge water, produced water, waste water stimulation fluids, pre-filtration seawater and diesel.

Filteration unit
Filteration unit
INFO  Sign in to add to favorites
Indicative priceLock
ManufacturerU S Gauge
Year built
ConditionUsed
LocationLock
OwnershipLock
TermsUpon request
Id261
Contact sellerLock


DETAILS
• Maximum Working Pressure: 7 bar g (100psi)
• Design Temperature: 700 C
• Maximum Throughput: 172 m3/hour (18 bbl/min)
• Approx. Quantity of Filter Elements: 50/Vessel.
• Safety Relief Valves: One on each vessel
• Cartridge Type: 2.7” x 50”
• Tank diameter: 26”
• Material: 316Stainless steel
• Pipe work configurations: 4” Individual / Serial / Parallel,
• Lifting Frame: DNV Certified 2.7-1/BS EN122079
• Weight (empty): 1750 kg
• Dimensions: W1500mm x L2500mm x H 2250mm
