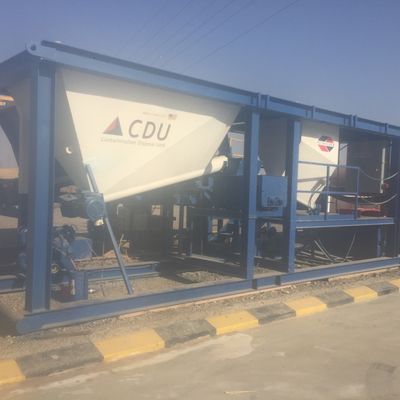

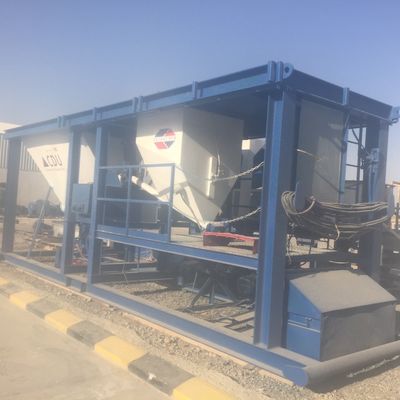

CDU Pugmill Plant

1. STRUCTURAL FRAME 1.1. Heavy-duty skid frame with winch truck pull bar on both ends 1.2. Overhead structure with welded steel roof 1.3. Roof access from ground with ladder 1.4. Removable roof hatch for service access into Geozorb hopper 1.5. Handrail system removable for transit 1.6. Tie-off point at ladder rungs for service access to cuttings hopper 1.7. Lifting eyes on all 4 upper corners 2. WORK PLATFORM 2.1. Safety grating walkway and work platform 2.2. Integrated stairwell – not a loose part 2.3. Removable chain for Geozorb loading access on three sides 2.4. Hooks for optional canvas side walls 3. GEOZORB METERING HOPPER 3.1. 50 cu. ft. capacity hopper 3.2. 6 in. diam. metering screw conveyor with gearbox and motor 3.3. WEG variable frequency drive provides range of dose rates 3.4. Weather tight removable lid 3.5. Low bin sensor helps prevent operator error and triggers alarm and/or shutdown protocols 4. CUTTINGS HOPPER 4.1. 30 bbl capacity 4.2. 20 ft. long x 14 ft. 6 in. width at top 4.3. 60 degree tank wall slope 4.4. Screw conveyor metering system 4.5. Speed control provides operator with manual control over system throughput 4.6. 1X 9 in. diam. screw conveyor 4.6.1. 1X 15 hp, explosion-proof, continuous duty gear motors 4.6.2. E-series continuous-duty sealed bearings 4.7. 1X 4 in. diam. drain fitting 4.8. Safety grating with 6 in. x 6 in. maximum openings 4.9. Man access-way through safety grating 5. CCM MIXER 5.1. Twin shaft counter-rotating design with inter-mashing longitudinal blades 5.2. 2X 10 hp, explosion-proof, continuous duty gear motors 5.3. E-series continuous-duty sealed bearings 5.4. Dust shrouding from overhead fill point 5.5. Redundancy achieved through parallel system design 5.6. Manually adjustable mixer body tilt mechanism provides control over mix & residence time 6. PNEUMATIC SYSTEM AND DIAPHRAGM PUMP 6.1. 2” diameter diaphragm pump transfers liquids into cuttings hopper 6.2. 10 hp air compressor and reserve air tank 6.3. 50 ft of discharge line with camlock fitting 6.4. 10 ft of suction line with inlet filter cage 7. ELECTRICAL AND CONTROL SYSTEMS 7.1. All motors and devices meet Class 1 Division 2 explosion-proof ratings 7.2. All machine wiring is in heavy duty flexible SO cord 7.3. All motors supplied with industry-standard C-Face adapters 7.4. Includes PLC automation, and software 7.5. Weather proof and extreme temperature rated operator interface touch screen panel 7.6. Clear protective rubberized cover for protection of touch screen panel 7.7. High impedance reactors to overcome oversized motor inductive load & extreme poor quality rig Power. 7.8. Safety lockout tagout system 7.9. Explosion-proof LED lighting for mixer area and work area
