NOV (Varco) TDS-4S

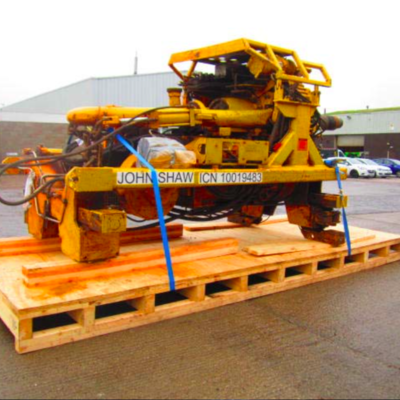

NOV (Varco) TDS-4S Topdrive complete with GE752 DC Hi Tq Shunt Motor, 7 port rotating head and local cooling system. In 48" x 72" fixed dolly frame (P/N M871008395) for W10 x 100 rails with C-Face style rollers. Configured with RH S-Pipe Saddle and RH S/Loop bracket.
Rating: 650T, Bail Length: 88", Pressure Rating: 5000 psi Supplied with the following:
- P/N: 82308 - 76” Link Tilt with P/N M6140002181 HDVC Retro Kit

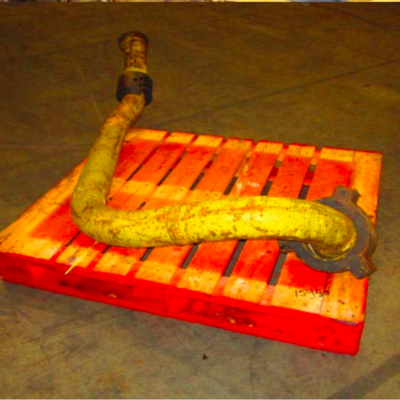

- P/N: 97332-505 - S-Pipe
- P/N: 30157364 - Mist Extractor/Blower Air Intake Filter in P/N 30157486 Mounting Frame with short length of P/N: 107590 10” OD flexible hose (approx. 6 feet) P/N 107590

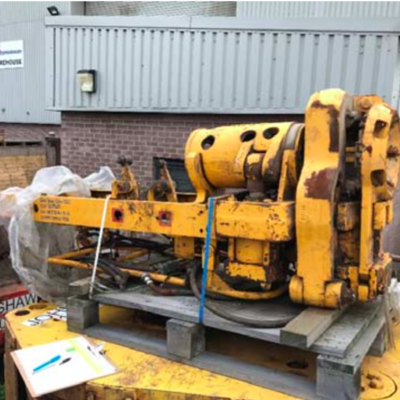

- P/N 95461-ATN - PH-85 Pipe-handler Assy (hanger shaft is missing
Overhauled in 2012, stored since 2016. OEM repair documentation with CoC from last repair is available.
