Saturation Diving System

This modular 200msw/12 man (SAT 12) portable Saturation dive system is owned by BUMI ARMADA BERHAD and is currently located in Southern Malaysia. Asking price includes spares worth  USD 300K.

Saturation Diving System
The 12-man Saturation Diving Systems are certified and operated in accordance with IMCA guidelines and codes of practice for offshore diving operations.

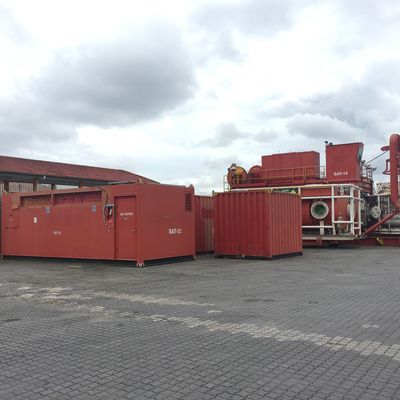

The compact containerised systems provide dive control, main diver control panel, twin lock deck decompression chamber, HP and LP compressors, launch and recovery system and diver’s stage wet bell. Optional construction support and inspection equipment available includes bolt tensioning, water jetting, broco underwater cutting, grit entrenched systems, large flow capacity pumps, and aluminium work boats.



INFO

Price:
Manufacturer:
Hallin Marine
Year built:
2013
Condition:
Working Condition
Location:
Ownership:
ID:
475
Contact seller:

DETAILS

SPECIFICATIONS- SAT SYSTEM

MAIN PARTICULARS
  • Classification standard ABS A1 Diving System
  • Design standard IMCA D018/D024
  • Depth rating 21 bar 200 msw

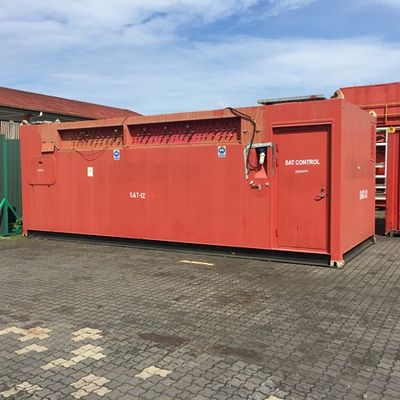

DIVE AND SATURATION CONTROL UNIT
  • Dive/Bell control panels comprising:
  • Diver gas reclaim control panel
  • Bell services controls:
  • Electrics, communications and analysers, hot water temp monitoring, carbon dioxide and oxygen analysis of divers gases Through water emergency communications, diver colour hat camera and video recording system controls
  • Bell internal video monitoring and controls Chamber life support control panels DDC 1, TUP, HRC comprising:
    • Unscrambler communications sets
    • Chamber depth and atmosphere monitoring and analysis
    • Chamber CCTV video monitoring and gas distribution panel

HYPERBARIC RESCUE CHAMBER 12 MAN
  • Onboard emergency gas & battery power for 72h 12 man HRC c/w 12 x full seat harnes and approved safety helmets
  • 1 x toilet, shower, wash basin
  • 4 x HCU, 13 x BIBS complete with dump, 6 x carbon dioxide scrubbers, medical lock and communications transfer, 6 x bunk beds
  • Lifting frame and rigging, towing bridle

LIFE SUPPORT MACHINERY UNIT
  • Electric main / Emergency distribution system
  • Dual diver hot water unit (100% redundancy)
  • Environmental control unit (100% redundancy)
  • Chamber portable water unit (hot/cold)
  • Divex air driven gas reclaim surface unit
  • Aircon environment (optional)

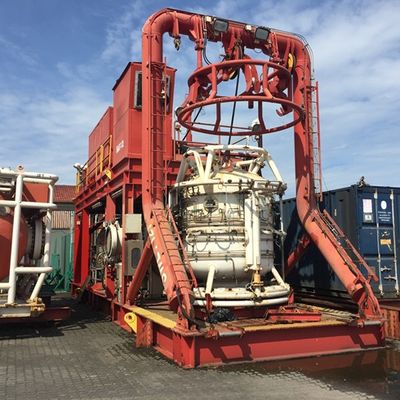

DIVING BELL 3 MAN
  • 3 x diver excursion umbilical with reclaim hose
  • 3 x diver helmet mounted colour cameras &lights
  • 2 x bell carbon dioxide scrubber
  • 1 x bell heater (hot water unit)
  • 2 diver gas reclaim (DGRS) panel
  • Bell/diver communication systems
  • On-board emergency gas cylinders and power battery Through water communications
  • Telescopic stand-off frame
  • Hydraulic bottom door system
  • Internal and external lights
  • ROV intervention panel (optional)

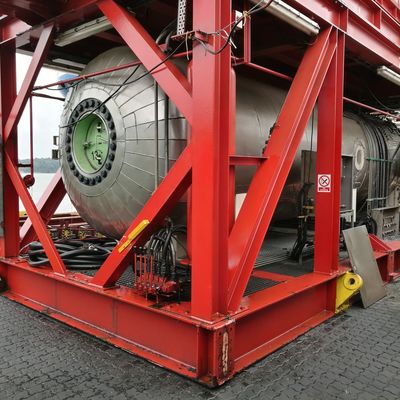

CHAMBER VOLUMES
  • Main DDC 21.40m3
  • TUP 5.80m3
  • HRC 19.26m3
  • Bell 5.00

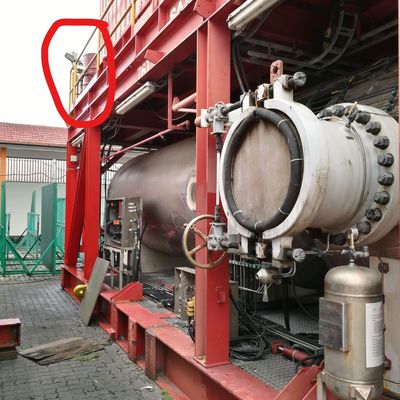

 MAIN SKID
  • ‘A’ frame and bell trolley
  • 9 man living chamber c/w 9 x bunk beds with
    mattresses
  • 10 x BIBS, 4 x HCU, carbon dioxide scrubbers, medical lock and communication

WINCH SKID
  • Main bell winch (hydraulic 12mT man riding)
  • Guide wire winch (hydraulic 8mT double sheaved man riding), Recovery to bell catcher hooks
  • Umbilical sheave (hydraulic)
  • Hydraulic power pack and tanks with 100% redundancy

OTHER EQUIPMENT
  • 20 ft ISO store / workshop container
  • 260m bell umbilical with basket
  • 3 x Jewel 601 reclaim hats
  • 2 KMB x 18B bank mask
  • Deck electrical / gas leads
  • Spreader bar and lifting slings

POWER REQUIREMENTS
  • Power requirement 440Vac 50/60Hz
  • Emergency generator 250 kVA
  • Compressed air 400 cfm @90 psi
  • Seawater 25 gpm @2-4 bar
  • Freshwater 3 gpm @ 2-3 bar

MAIN CHAMBER INCLUDING BELL AND SKID
  • Length 12800mm
  • Width 3700mm
  • Height 7000mm
  • Weight 72,000kg

TUP
  • 4 x BIBS complete with dump
  • 1 x toilet, shower, wash basin, 1 x HCU
  • Carbon dioxide scrubbers and communications

HRC EMERGENCY CONTROL UNIT
  • Chamber life support control panel
  • Unscambler comms sets
  • Chamber depth atmosphere
  • Monitoring and Analysis
  • Chamber CCTV video monitoring and gas distribution panel
