2 Diver LARS (Lite Compact)

This very compact Diver Launch and Recovery System is also stackable and designed to fit 2 complete systems in a high cube 20” container. The footprint of this LARS is only 2000mm x 2160mm to use the least amount of deck space onboard a vessel.

Further it has the same high quality already known in the LARS Lite. Extensive use of high quality Stainless Steel, hydraulic controls for winches and frame, etc.. This realises a long lifespan even with the harsh environments of the sea. Further details below and attached.

INFO

Price:
Manufacturer:
Pommec BV
Year built:
2018
Condition:
NEW
Location:
Ownership:
ID:
521
Contact seller:

DOCUMENTS

Sign in to view documents

DETAILS

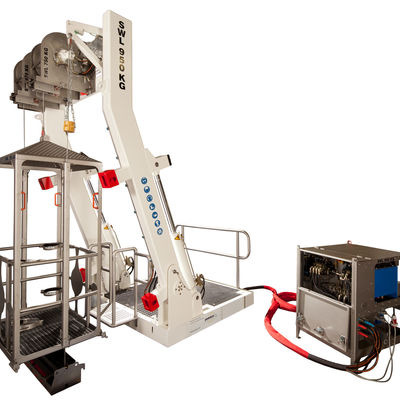

This complete and compact set has all the features needed to Launch and Recover the Divers to and from the subsea work area. Important also to know is that every LARS in our product range come complete with Lloyd’s Design and Appraisal Documents. Recent info was that DAD’s for diving systems will become more and more important in the future, and probably sooner than most think! The big investments currently made in the offshore Wind parks and Oil fields will make organisations like IMCA, OGP and HSE pay more and more attention to certificates and procedures in this upcoming part of the diving industry!

Product Information
- Very compact Skid Base and A-Frame
- Man-rider winches
- Including Separate Hydraulic Power pack (main and secondary)

- 2 diver Basket
- Clump weight

- Fixed Hydraulic controls on the Hydraulic Powerpack

Features
- Highly transportable and compact very small footprint
- Systems are stackable, 2 units will fit in a high cube open top container
- Diving basket framework AISI 316L stainless steel
- Clump weight AISI 316L stainless steel
- Man-rider winches & drum AISI 316L stainless steel
- A-frame hydraulically controlled
- Height limiting switch
- Lloyd’s Register of Shipping Design Approved (certification of other notified bodies possible)
- The complete system is covered by Design Approval Documents

Possible options

- Flood light
- Remote control with 15 mtr cable
- Stainless steel Bridge System
- Cylinders - Extensive overseas maintenance kit
- Operators and maintenance training
- 20' High cube open top container
- Operators and maintenance training

Technical specifications

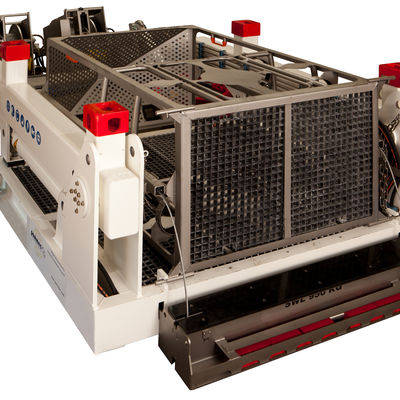

- Dimensions stored: 3700 x 2200 x 1300 mm (LxWxH)
- Dimensions skid: only 2000 x 2200 mm (LxW)
- Dimensions operational (with extended A-Frame): 3300 x 2200 x 4270 mm (LxWxH)
- 2850 Kg (including clump weight and basket)
- HPU required: 180 Bar - 42 lpm (load sensing with oil bleed)
- Platform: offshore coated steel - S 355 J2
- A-frame: offshore coated steel - S 355 J2
- Control box: stainless steel - AISI 316L
- Hydraulic cylinders/rams: offshore coated steel
- Double break hydraulic driven man-riding winches
* Basket winch, top mounted

* Clump weight winch, top mounted

- 80Mtr diam. 10mm wire for cage
- 160Mtr diam. 8mm wire for clumpweight
- Diving cage:
* Capacity for two divers

* Stainless Steel AISI 316L

* 1250 x 900 x 2350 (LxWxH) Inner dimensions

* 250 Kg Weight

* 500 Kg Payload

* 2x Fixating point for 50 Ltr cylinder (excl. cylinders)

- Clump weight:
* Stainless steel AISI 316L, Synthetic top plate

* 1500 x 300 x 255 (LxWxH)

* 200 Kg
