ROV Launch and Recovery System

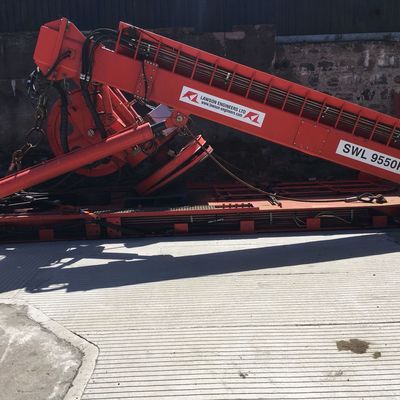

Compact Lawsons Work Class LARS comprising winch & telescopic A-frame. Rated to 9,550kg SWL and comes with approx 2,600m of NSS8 umbilical. A-frame includes telescopic upper boom providing additional functionality. Further details included below...

INFO

Price:
Manufacturer:
Lawsons
Year built:
2006
Condition:
Used
Location:
Ownership:
ID:
545
Contact seller:

DOCUMENTS

Sign in to view documents

DETAILS

A-Frame Dimensions:
  • Inboard Reach 4300mm
  • Deployed Reach 4650mm
  • Height stowed 2440mm
  • Length 8000mm
  • Width 2900mm
  • Weight 16,000kg

Winch Dimensions:
  • Width 2900mm
  • Height 3435mm
  • Length 3000mm
  • Weight excluding umbilical 12,000kg
